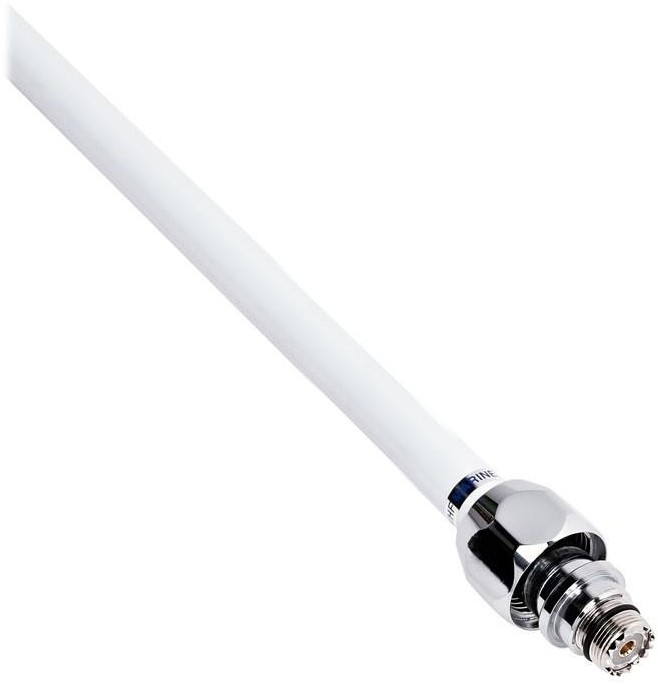

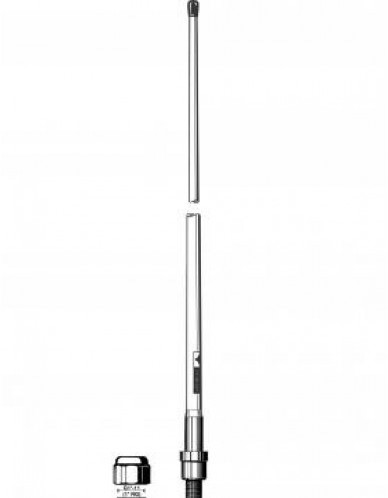

Procom - CXL 2-1 l Omni - 110000119 "UHF(f)" 146 - 165 MHz

€ 135,00 € 163,35 Incl. BTW Bezig met verwerken... Zet op verlanglijstje
Productinformatieblad
Bekijk onze winkel
Vandaag besteld is morgen in huis.

Toevoegen aan favorieten

Indien voorradig direct verstuurd!
Netjes ingepakt!
Afhalen en retouren in de winkel mogelijk.
Retouren eenvoudig via uw eigen account.
Pakket volg systeem ( track en trace)
Pakket verzekerd verstuurd.

Artikelomschrijving & specificaties
Documenten
Veel gestelde vragen

Artikelomschrijving

Description

This base station and maritime VHF antenna is developed for use on board ships as well as on masts and thanks to the 1” revolving nut mounting system it can be mounted in the mast, in the auxilliary mast as well as on the cross-beam. By means of Procom’s flange mount it can also be mounted on deck or rooftop.
Bear in mind that the higher the antenna is mounted the better coverage.
Avoid mounting the antenna parallel with and in the neighbourhood of other metal parts, such as mast, supporting wires etc. Free mounting and as high as possible is most preferable, otherwise the VSWR and the radiation diagram will be influenced.
The antenna is a ½ ? design and this means that it needs neither loading coils, ground-plane, radials nor other auxiliary arrangements.
CXL 2-1/... can, without problems, operate with duplex radioes and on the semi-duplex channels, owing to the fact that it is broad-banded (see VSWR diagram). In other words, CXL 2-1/... has a shipshape VSWR on the Rx-frequencies, which is just as important as it is for the Tx-frequencies.
Furthermore, the antenna is a grounded radiator antenna and therefore it shows a DC-short across the coaxial cable.
A conical glass fibre tube completely encloses the carefully designed radiating element to assure long dependable service in all climates.

Specifications

Electrical

Model

CXL 2-1/...

Frequency

CXL 2-1/s : 138 - 156 MHz
CXL 2-1/l : 146 - 165 MHz
CXL 2-1/h : 155 - 175 MHz

Antenna Type

Coaxial dipole, broad-banded

Max. Input Power

150 W

Polarisation

Vertical

Pattern Type

Omnidirectional

3 dB Beamwidth, E-Plane

80 °

3 dB Beamwidth, H-Plane

Omnidirectional

Impedance

50 O

Gain	0 dBd (2.2 dBi)

VSWR	CXL 2-1/s : <1.5:1 CXL 2-1/l : 146 - 163 MHz < 1.5:1 and 146 - 165 MHz < 1.75:1 CXL 2-1/h : 156 - 174 MHz < 1.5:1 and 155 - 175 MHz < 1.75:1

Bandwidth

18 - 21 MHz depending on model

Antistatic Protection

All metal parts DC-grounded (Connector shows a DC-short)

HCM Code(s)

HCM000ND00, 040DE00

Mechanical

Connection(s)

UHF(f) (standard)

Materials

Shroud : Polyurethane-coated glass fibre
Mounting bracket : Chromed brass

Colour

White (RAL 9003)

Wind Area

0.018 sq. m / 0.19 sq. ft

Wind Load

25 N (160 km/h)

Dia. At Top End

8 mm / 0.31 in.

Dia. At Bottom End

16 mm / 0.63 in.

Height

Approx. 1210 mm / 47.64 in.

Weight

Approx. 0.3 kg / 0.66 lb.

Mounting

On 1" RG (G1" - 11) threaded water pipe or on optional mounting brackets (see accessories )

Environmental

Operating temperature range

-30 °C to +70 °C

Survival Wind Speed

200 km/h

Ingress Protection

IP66
